AIPHONE JOS-1VW Complete Video Intercom Kit – 7" JO-1MDW Monitor + JO-DV Surface-Mount Door Station with Mobile App

AIPHONE JOS-1VW Complete Video Intercom Kit – 7" JO-1MDW Monitor + JO-DV Surface-Mount Door Station with Mobile App

$824.00 USD
$824.00 USD
Sale Sold out
Shipping calculated at checkout.

AIPHONE JOS-1VW Complete Set – 7" JO-1MDW Intercom + JO-DV Surface-Mount Door Station (Mobile App Ready)

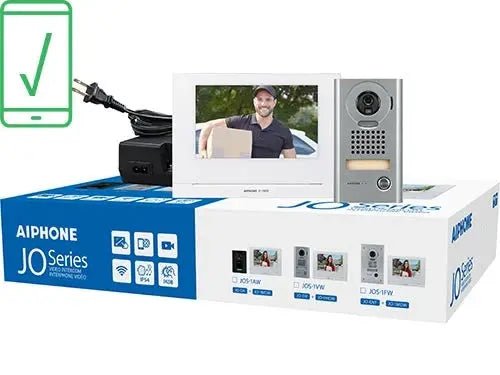

The AIPHONE JOS-1VW is a complete, mobile-ready video intercom kit that includes the JO-1MDW 7" interior touchscreen monitor, the JO-DV zinc die-cast surface-mount door station, and the PS-1820UL power supply. Designed for dependable two-wire installation, this system lets you see and speak with visitors, then unlock the door from the on-site monitor or via the Aiphone mobile app.

Key benefits: Hardwired reliability (answers even if internet is down), app connectivity for up to 8 smartphones/tablets, vandal-resistant surface-mount door station, night-view white LEDs, and no recurring storage fees for onboard recordings.

Features at a Glance

  • Complete box set: monitor, surface door station, and power supply included
  • 7" JO-1MDW touchscreen: crisp video, intuitive door release from monitor or app
  • Mobile app ready: connect up to 8 iOS/Android devices for remote answering
  • Two-wire link: reliable hardwired calls between monitor and door station
  • Onboard memory: record calls (manual or auto); expand with microSD (up to 32GB)
  • JO-DV door station: zinc die-cast faceplate, IP54, IK08 impact rating
  • Night visibility: automatic white LED illumination at the door
  • Hands-free communication with integrated camera and clear audio

How It Works

A press at the video doorbell rings the on-site monitor and up to eight smartphones or tablets. Answer, see and speak with your visitor, then unlock the door from the touchscreen or the app’s slider. If internet is unavailable, the hardwired on-site monitor still answers and can record.

What’s Included

  • Inside Monitor: AIPHONE JO-1MDW (7" TFT touchscreen)
  • Video Door Station: AIPHONE JO-DV (surface-mount, zinc die-cast)
  • Power Supply: PS-1820UL (AC 100–240V input / DC 18V 2A output)

Technical Specifications

Inside Monitor – JO-1MDW

Video Display 7" TFT Touchscreen
Mounting Surface wall mount; desk mount with MCW-S stand
Internal Recording Up to 10 calls @ 10 seconds/call
Memory Expansion microSDHC up to 32GB (≈1,000 calls @ 10s each)
Door Release N/O dry contact, 24V AC/DC, 500mA; app slider activates contacts at JO-1MDW
Communication Handsfree or PTT
Wireless 2.4 GHz; 802.11b/g/n (Wireless B/G/N)
Max Devices Up to 8 smartphones/tablets per system

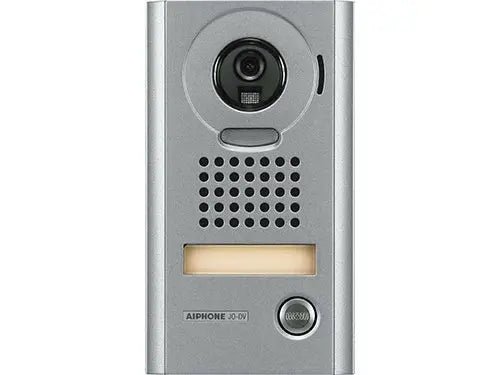

Video Door Station – JO-DV

Power Source Supplied by inside monitor
Camera 1/4" color CMOS; automatic white LEDs for night view
Mounting Surface wall mount using a 1-gang electrical box
Faceplate Zinc die-cast; vandal resistant
Ratings IP54 enclosure; IK08 impact
Operating Temp -40° to 140°F (-40° to 60°C)
Wiring to Monitor 2-cond., low-cap, solid, non-shielded
Max Distance 165' (22AWG) / 330' (18AWG)

Power Supply – PS-1820UL

Input AC 100–240V, 50/60Hz
Output DC 18V, 2A

Ideal Applications

Single-entry homes, apartments/condos, small offices, lobby doors, and any opening where surface-mount door hardware, reliable two-wire intercom, and mobile answering are essential.

App available on Apple App Store and Google Play. Feature availability may vary by network and site conditions.
