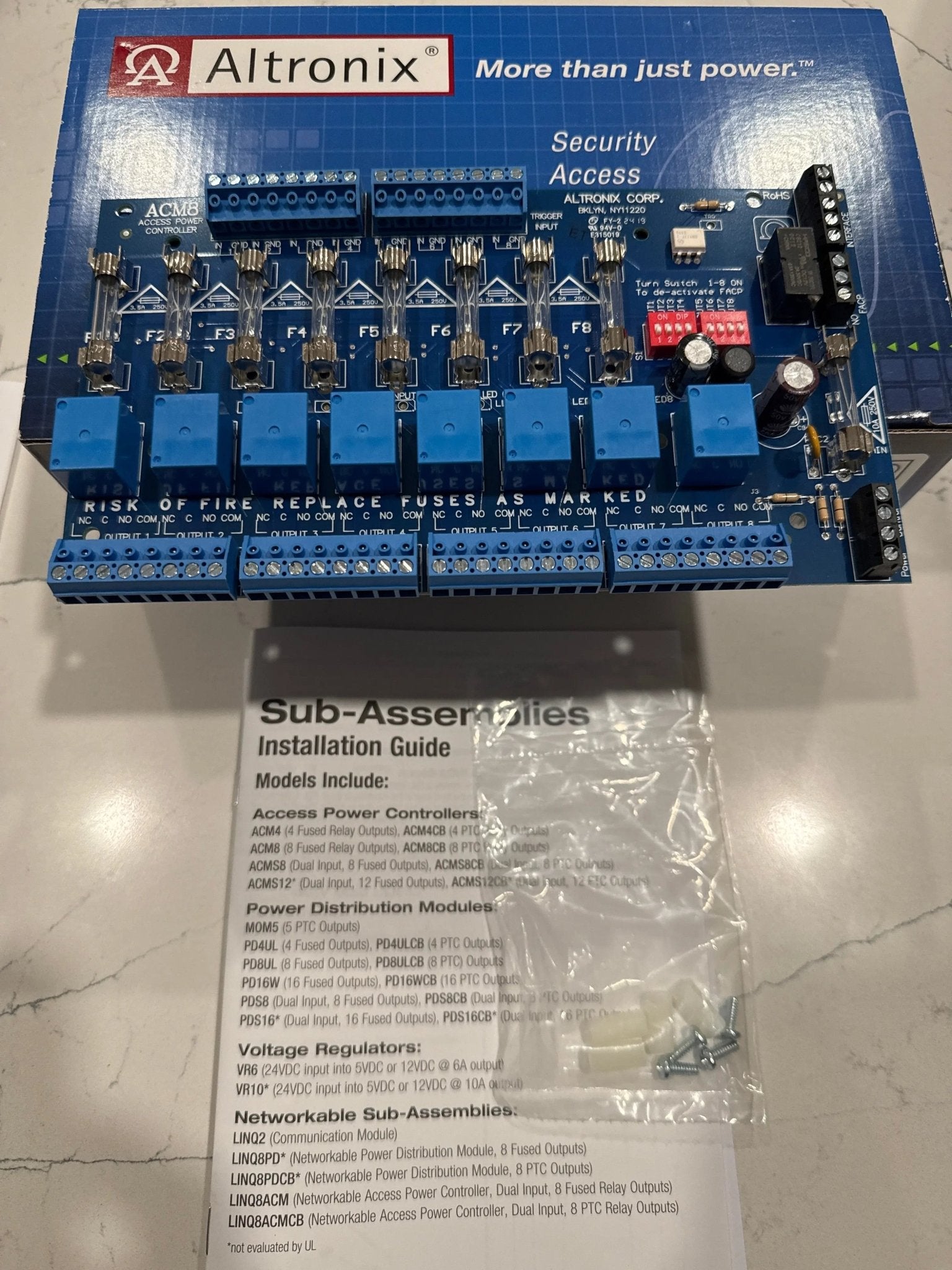

Altronix ACM8 Power Supply – Fuse Protected, 8 Port Access Power Controller

The Altronix ACM8 is a power distribution module designed to provide fuse-protected, individually controlled outputs for access control systems. With support for up to 8 locking devices or auxiliary components, it ensures clean, reliable power distribution from a single 12/24VDC power source.

Key Features & Benefits

• Eight (8) fuse-protected outputs for locks, strikes, maglocks, or access devices
• Selectable 12VDC or 24VDC input
• Individually controlled and supervised outputs
• Supports fail-safe and fail-secure lock operation
• LED indicators provide easy power status monitoring
• Compact design for enclosure or panel mounting
• UL Listed for access control applications

Applications

Ideal for commercial access control systems powering multiple doors, maglocks, strikes, REX devices, or auxiliary security equipment.

Specifications

• Input: 12VDC or 24VDC regulated power
• Outputs: 8 fuse-protected, independently controlled
• Protection: Class II fuses with blown fuse indication
• Compliance: UL Listed for Access Control

What’s Included

• 1 × Altronix ACM8 8-Port Fuse-Protected Power Controller
• Installation instructions
