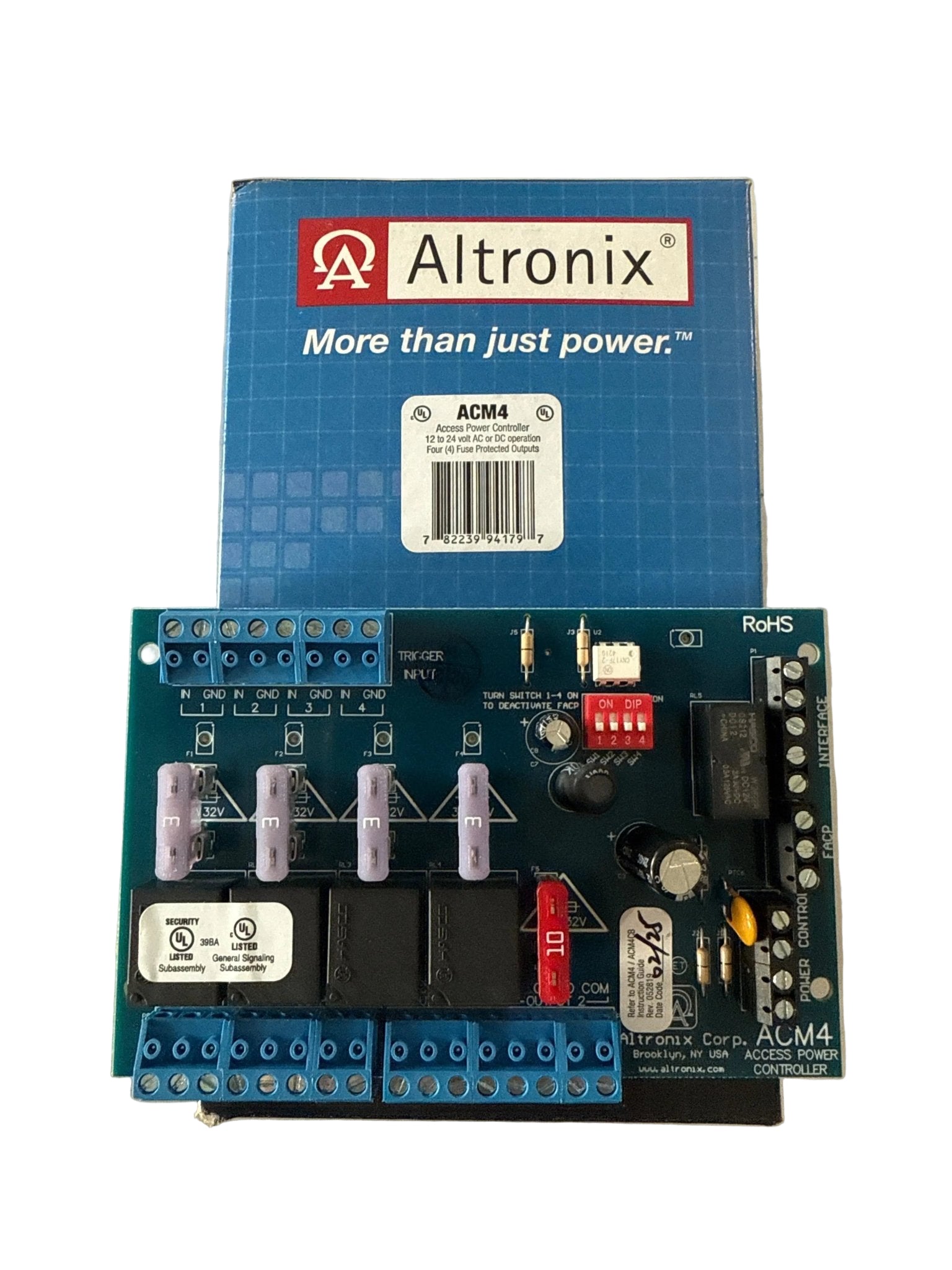

Altronix ACM4 Power Supply – Fuse Protected, 4 Port Access Power Controller

The Altronix ACM4 is a power distribution module designed to provide fuse-protected, individually controlled outputs for access control systems. Compact and reliable, it simplifies powering multiple door strikes, maglocks, and other access devices from a single 12/24VDC power source.

Key Features & Benefits

• Four (4) fuse-protected outputs for locking devices or access components
• Selectable 12VDC or 24VDC input
• Individually controlled and supervised outputs
• Supports fail-safe or fail-secure lock operation
• Power status LED indicators for easy troubleshooting
• Compact design for panel or enclosure mounting
• UL Listed for access control applications

Applications

Designed for commercial access control systems requiring clean, protected power distribution to multiple doors, strikes, maglocks, or auxiliary devices.

Specifications

• Input: 12VDC or 24VDC regulated power
• Outputs: 4 fuse-protected, individually controlled
• Protection: Class II fuse, blown fuse indication
• Compliance: UL Listed for Access Control

What’s Included

• 1 × Altronix ACM4 4-Port Fuse-Protected Power Controller
• Installation instructions
