Brivo ACS6100 Large Expansion Can with Power

Scalable, enclosure-based expansion for Brivo ACS systems. The Large Expansion Can accommodates up to eight (8) ACS6100 expansion boards and includes integrated backup power for controller/expansion electronics.

Key Features

• Holds up to 8× ACS6100 expansion boards
• Large, lockable steel enclosure for secure installations
• Two internal power supply boards for controller/expansion power
• High-capacity 12V 28Ah sealed lead-acid battery backup (included)
• Note: Internal PSUs do not power electronic locks

Compatibility

Compatible with all Brivo ACS6000 and ACS6100 series boards.

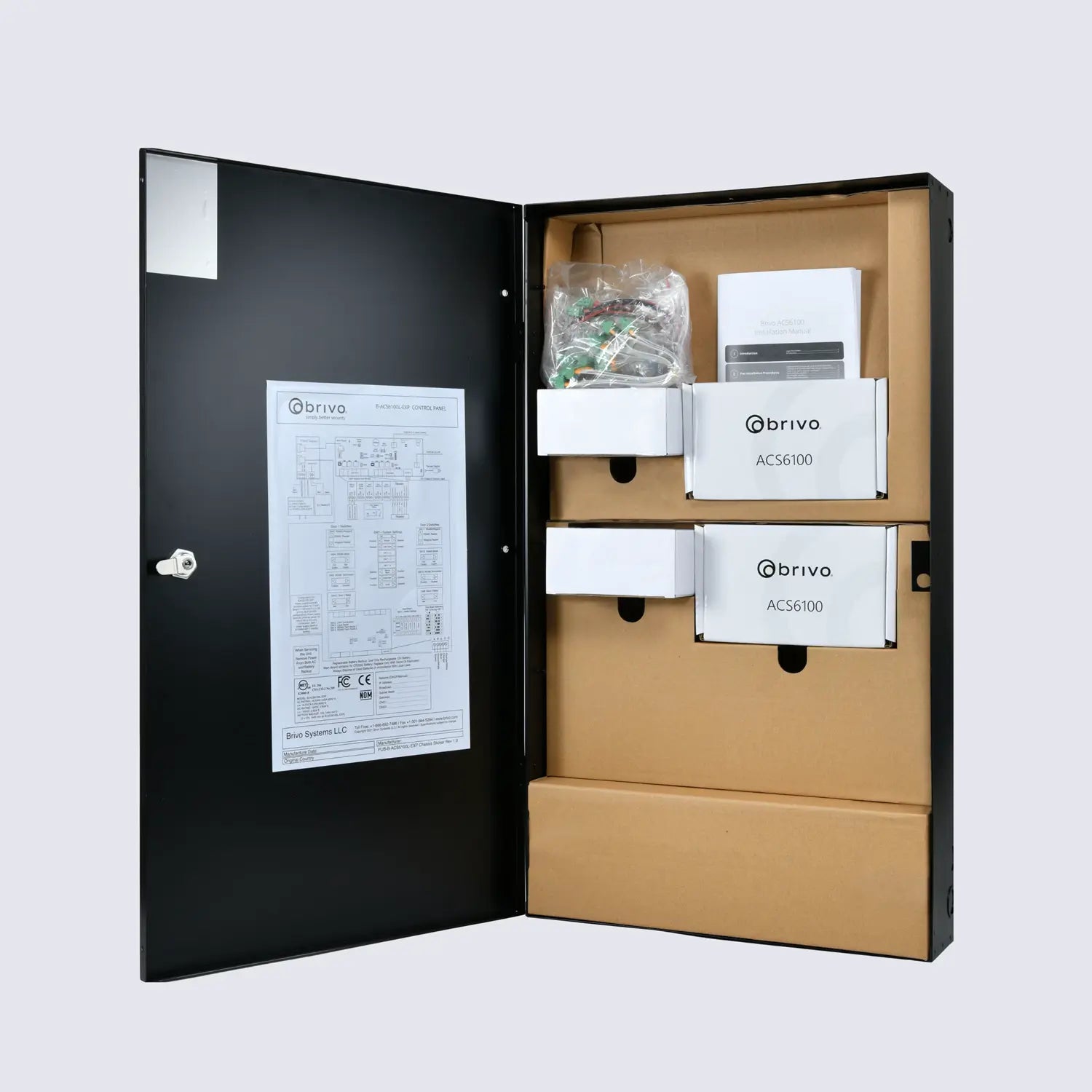

What’s in the Box

• 1 × Large enclosure with lock
• 2 × B-ACS6100-PSB internal power supply boards (controller/expansion power only)
• 2 × Plug-in AC/DC power adapters
• 1 × 12V 28Ah sealed lead-acid battery

Power & Battery

• Input: AC via included adapters
• Output: 12V DC for controller/expansion electronics
• Backup: 12V 28Ah SLA battery (included) for extended runtime

Installation Notes

• Provide a separate, listed lock power supply for maglocks, strikes, and door hardware.
• Mount in a secure, ventilated location with dedicated AC outlet access.

Model: ACS6100 Large Expansion Can (with dual B-ACS6100-PSB)
