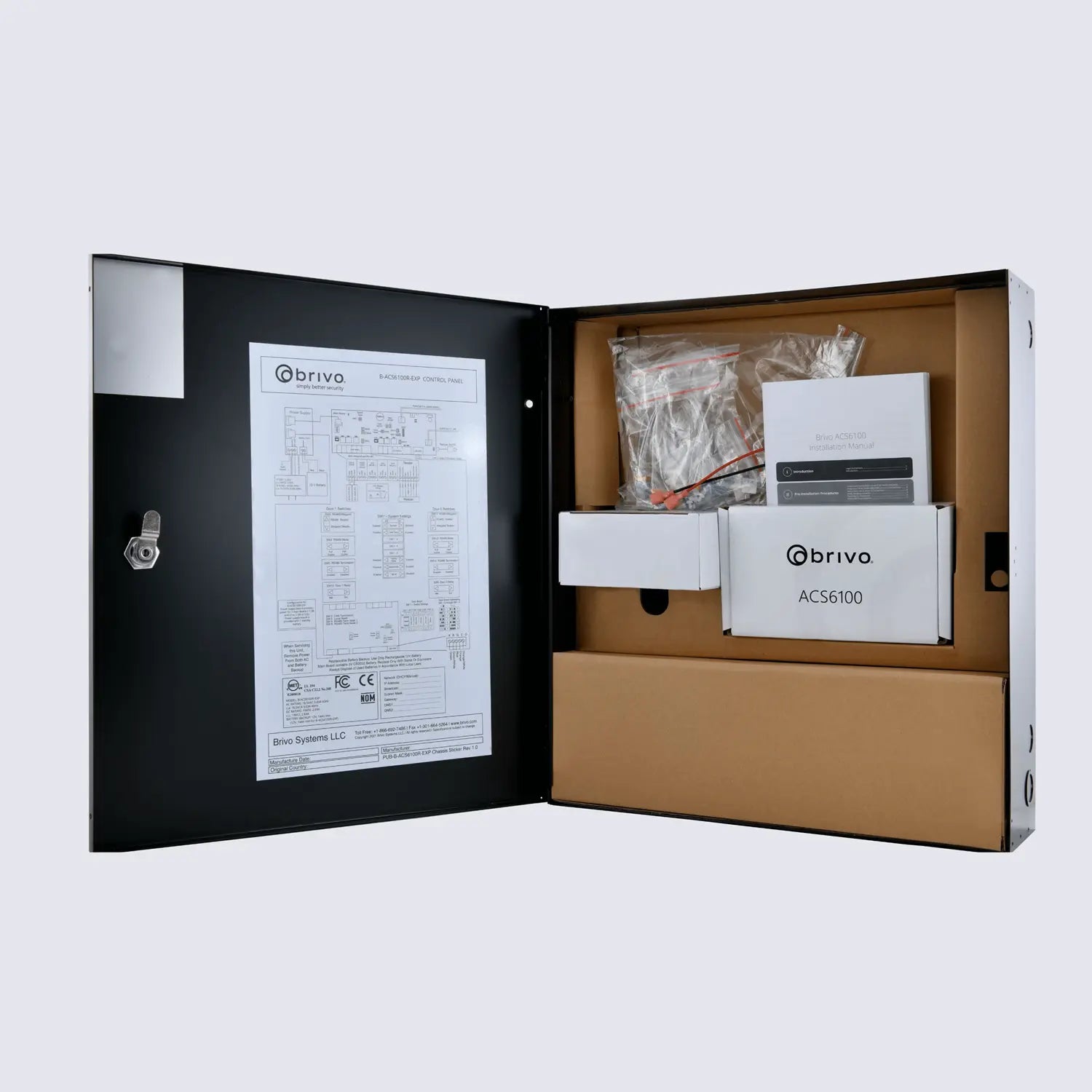

Brivo ACS6100 Regular Expansion Can with Power

Secure, enclosure-based expansion for Brivo ACS6000/ACS6100 systems. This Regular Expansion Can accommodates up to four (4) ACS6100 expansion boards and includes integrated backup power for controller electronics.

Key Features

• Holds up to 4× ACS6100 expansion boards
• Lockable steel enclosure for secure installations
• Integrated power supply board for controller/expansion electronics
• 12V sealed lead-acid battery backup included
• Note: Internal PSU does not power electronic locks

Compatibility

Compatible with all Brivo ACS6000 and ACS6100 series boards.

What’s in the Box

• 1 × Regular enclosure with lock
• 1 × B-ACS6100-PSB internal power supply board (controller power only; no lock power)
• 1 × Plug-in AC/DC power adapter
• 1 × 12V 14Ah sealed lead-acid battery

Power & Battery

• Input: AC via included plug-in adapter
• Output: 12V DC for controller/expansion electronics
• Backup: 12V 14Ah SLA battery (included)

Installation Notes

• Provide a separate, listed lock power supply for maglocks, strikes, or door hardware.
• Mount in a secure, ventilated location with dedicated AC outlet access.

Model: ACS6100 Regular Expansion Can (with B-ACS6100-PSB)
