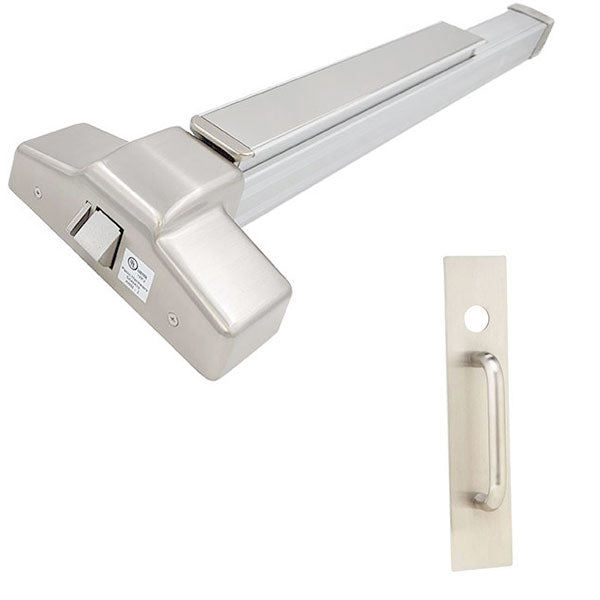

Crash Bar Heavy-Duty Grade-1 Rim Exit Device – 4' Length with Motorized Latch Retraction, Built-in REX, Night Latch Trim & Schlage Cylinder (Stainless Steel)

This heavy-duty Grade-1 crash bar rim exit device is designed for institutional and industrial applications where durability, security, and code compliance are essential. Measuring 4 Feet (for doors 3'4" to 4') in length, cut to length needed, the exit device includes a motorized latch retraction kit with built-in request-to-exit (REX) switch, night latch pull trim, and a Schlage 20-022 rim cylinder in a sleek satin stainless steel (US32D/630) finish.

Key Features:

• Non fire-rated 4’ foot rim exit device – ideal for heavy-use doors
• Grade-1 construction ensures long-term durability and reliability
• Motorized latch retraction kit with built-in request-to-exit (REX) switch – includes a 3-year warranty
• ANSI Function 03: Entrance by pull when latch bolt is retracted by key (key removable only when locked)
• UL Listed for panic exit hardware
• Heavy-Duty extruded anodized aluminum mechanism case and cover plate
• Steel chassis, push pad, center case cover, and end cap for rugged use
• Hex key dogging standard on panic exit device
• Deadlocking latchbolt with 5/8” projection
• Non-handed design for quick and easy installation
• Includes ASA strike filler plate and 161 door edge filler plate
• Includes Schlage 20-022 rim cylinder with C-keyway and 2 keys

Night Latch Pull Trim:

• NL Night Latch Pull Trim with cylinder included
• ANSI Function 03 – Entrance by pull when latch bolt is retracted by key
• Escutcheon plate size: 3” wide x 13-7/8” height x 1/16” thick
• Projection: 2-7/16” with 3/4″ diameter x 6-1/4″ CTC
• Constructed from stainless steel for long-term reliability
• Thru-bolts to the head of exit device for secure mounting

Applications:

This heavy-duty crash bar exit device is ideal for schools, hospitals, warehouses, factories, and other high-traffic facilities that require secure egress and compliance with life-safety codes. Its Grade-1 certification, UL listing, and durable stainless steel finish make it a reliable choice for demanding door applications.

Note: This is a non fire-rated rim exit device. For fire-rated door applications, select the appropriate fire-rated hardware model.
