Major Manufacturing Router Template Kit for HES 5000 & 5700 Electric Strikes — Includes Spacer & Cutting Bit

Major Manufacturing Router Template Kit for HES 5000 & 5700 Electric Strikes

This professional-grade router template kit by Major Manufacturing is designed for precise installation of ASSA ABLOY HES 5000 and 5700 electric strikes. The complete kit includes the HIT-41HS1 template, 501AL faceplate option, router spacer, and aluminum cutting bit—everything you need for clean, accurate cuts.

Kit Includes

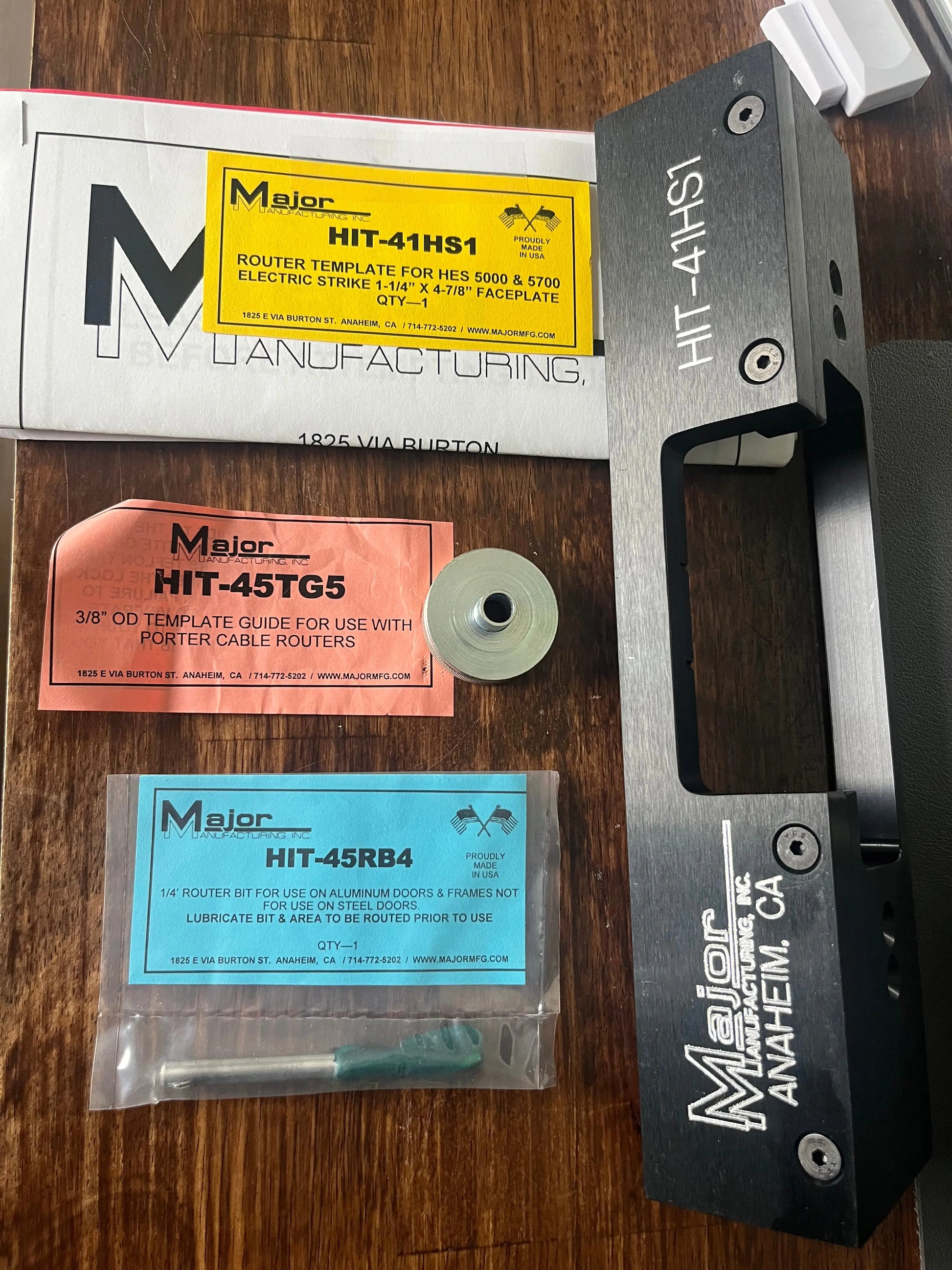

• Router Template (HIT-41HS1) — for HES 5000/5700 with 501AL faceplate
• Router Spacer — 3/8" outside diameter template spacer guide for Porter Cable Model 691
• Aluminum Cutting Bit — 1/4" diameter, ideal for high-speed router cuts
• Mounting Hardware — self-drilling screws included

Specifications

• Faceplate size: 1 1/4" x 4 7/8" with round corners
• Requires router with 3/8" O.D. template guide and 1/4" diameter bit
• Compatible with Porter Cable Model 691 router
• Works with HIT-45TG5 and HIT-45RB4 accessories

Example Use Case

Commonly used in access control installations, such as installing an ASSA ABLOY HES 5000C electric strike on a commercial aluminum trim glass door. In this example:

• The existing deadlock is replaced with an Adams Rite 4510 Deadlatch
• The interior knob is replaced with an Adams Rite 4590 Stainless Paddle (PUSH to exit)
• The original lock cylinder and key continue to operate the exterior door
• The HES 5000C electric strike is cut into the door using this template kit with a high-speed router, special bit, cutting paste, and jig

Why Choose Major Manufacturing Templates?

Major Manufacturing router templates are known for durability, precision, and professional results. Using the right template ensures proper fit, reduces installation time, and prevents costly mistakes during access control upgrades.
